How do you install a self closing door hinge?
Sophia Aguilar general
- Step 1 - Remove the Old Hinges. The current hinges on the door have to be removed in order for the new self closing door hinges to be installed.
- Step 2 - Place the Hinges.
- Step 3 - Drill Door Hinge Holes.
- Step 4 - Install Hinges.
- Step 5 - Place the Door.
.
Simply so, how do you install a self closing hinge?
How to Adjust a Self-Closing Spring Hinge Yourself
- Remove the Locking Pin. Place the hex wrench into the socket at the top of the spring hinge and turn in either direction to release tension on the pin. Remove the pin with a pliers.
- Tighten or Loosen in Small Steps. Rotate the wrench until the next hole comes into view and install the pin. Test the door close rate.
Similarly, how many self closing hinges should you put on a door? Fire-rated doors require at least two spring hinges to meet most building codes, unless a separate door closer is used. If you are using multiple spring hinges on a single door, adjust each hinge one degree at a time so that are the hinges are working equally to close the door.
Additionally, how does a self closing door hinge work?
Hydraulic Hinges The more expensive type of self closing door hinges use hydraulic pressure to close the door. These types of hinges work on a vacuum system, so that when you open the door, a plunger sucks air out of a chamber, the loss of this air creates a vacuum.
What is the difference between self closing and soft closing hinges?
Soft-close hinges, on the other hand, have hydraulics built into them so when you close the cabinet door, the hydraulics take over and ease the door closed silently. Most hinges that are soft-closing are also self-closing, but not all self-closing hinges are soft-closing as the "thump" sound demonstrates.
Related Question Answers
What is the thing that closes a door called?
An automatic door closer,more often called a "door opener", opens the door itself, typically under the control of a push button, motion detector or other device, and then closes it as well, employing a motion or proximity detector to determine when it is safe to close the door.How do I stop my door from slamming self closing?
Just stick a few small felt pads along the edge of the doorframe: Position a pad at the top and bottom of the frame, along with two more pads at the top and bottom of the strike plate. The pads provide just enough soft cushioning to slow down the door as it closes, preventing a slam. Shush with weather stripping.Are self closing hinges required on garage door?
The IRC already included a requirement for these doors to be self-closing (equipped with a closer or spring hinges), but for some reason it is still common to find garage doors that are not self-closing. One theory is that it is inconvenient to have a self-closing door in that location.What are spring loaded hinges?

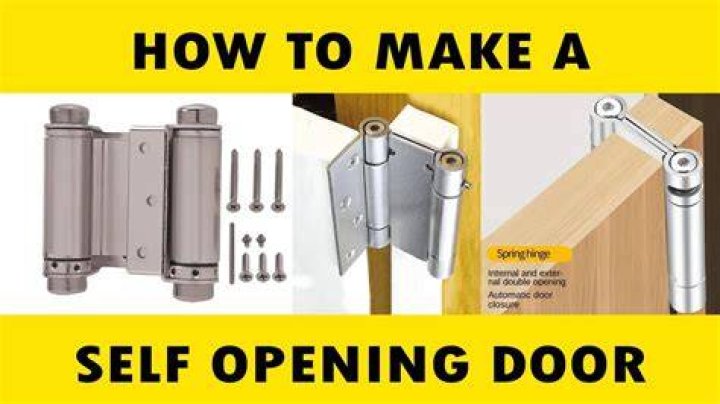

A spring hinge, also known as spring loaded hinges, self-closing hinges, and door closing hinges, are hinges fitted with a spring, automatically closing the door from an opened position. Spring hinges are adjustable.How does a slow close hinge work?
Soft close hinges tend to be manufactured with plastic pads fitted to connect with the leaf of the door just before it touches the frame. From here, the damper slows the movement of the door right down and controls it so that it simply taps shut quietly and gently.How do I adjust the tension on my soft close hinges?
There are three adjustments for the soft close. To change the adjustment, the small tab must be moved and the door then fully closed. The soft close can have light, medium, or heavy slow soft close movement. For the medium soft close section, the small adjustment tab needs to be in the middle of the adjustment range.How do you adjust a swinging hinge?
How to Adjust a Swing Door- Locate the spring-loaded hinge access plates at the bottom of the door at its pivot point.
- Locate the adjustment screw at the end of the large spring mounted in the hinge assembly.
- Twist the adjustment screw in a counterclockwise direction one full turn to lessen the spring tension on the door.
How do you fix a spring hinge?
Fixing Springed Hinges- Close the door. Insert the Allen wrench into the hex hole at the end of the hinge.
- Turn the Allen wrench clockwise to compress the spring.
- Insert the new hinge pin into the pin hole.
- Remove the Allen wrench.
- Things You Will Need.
- Tip.
- References (2)
- About the Author.
How many hinges should a door have?
The general rule used to determine the number of hinges is: Every door should be provided with at least one hinge for every 30 inches in height or portion thereof; however, more hinges may be required per chart below. For example, a 90" door needs three hinges and a 91" door needs four.How do you set a self closing door mechanism?
Remember, when it comes to turning door closer adjustment screws, a little goes a long way. Start with no more than 1/8 of a turn. Turn the adjustment screw clockwise to slow the door closer down, counter-clockwise to speed it up, then get down off the ladder and observe the effect. Open the door and watch it close.How do you lubricate self closing door hinges?
Photo 2: LubricateLightly coat the hinge pin with petroleum jelly and dab a little in the top of the pin slot. Reinsert the pin and wipe off any excess. If you've got a door hinge that squeals every time you open the door, we've got the fix for you! A little petroleum jelly will rid the hinge of that annoying wail.How do you remove a spring loaded hinge?
Removing a Spring-Loaded HingeUsing a hex wrench, open the spring so you can see the tension pin. Then, remove the pin using pliers. You can then remove the hex wrench and allow the spring to naturally unwind. Once the spring is removed, you can take the other screws out and remove the hinge normally.How many hinges does a fire door need?
with 3 hinges
How do you make a self closing door with a water bottle?
Steps- Helpful?
- Make a hole on the cap of the water bottle with the nail and the hammer.
- Make a knot on one end of the wire.
- Insert the other end of the wire into the hole made in the cap.
- Close the bottle with the cap.
- Hammer a nail on the upper part of the door frame near the tower bolt.
How do you measure door hinges?
How to Measure a Door Hinge- Open the door. Remove the screws from the middle hinge of the door with a Phillips screwdriver.
- Lay the open hinge on a flat surface.
- Measure the height of the hinge with a tape measure.
- Determine the size of the hinge's corner radius, if the corner is not square.
