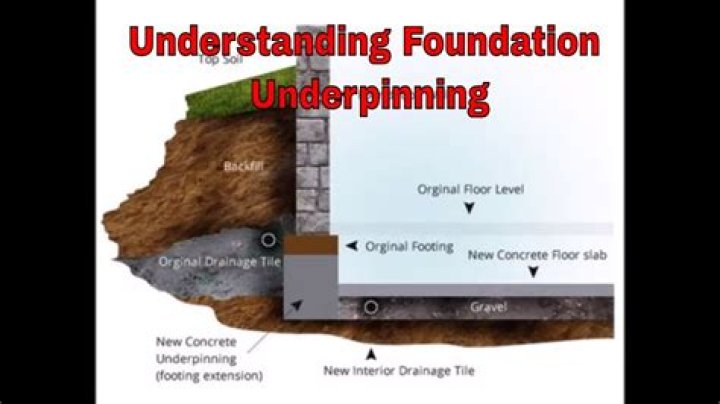

How do you underpin a concrete slab?

The most used method of underpinning is mass pour method. This process requires excavating sections in sequence to a pre-established depth below the footing and place concrete on each pit. Repeat the method until the entire affected area has been underpinned.

Thereof, how do you underpin foundations?

A traditional method of underpinning is soil replacement under the foundations by digging, followed by concrete pouring. The soil is often replaced in box-shaped parts in a predetermined sequence so that the bearing capacity of the current foundation is not compromised.

Likewise, how do you underpin brick footings? Injecting resin or cement powder into the loose sand underneath a footing to strengthen the foundation soils and prevent them from consolidating (settling) or washing away. Installing bricks or mass-concrete directly underneath a footing to extend the footing down to a more stable foundation material.

Also asked, do you need a permit for underpinning?

A building permit is required to provide underpinning of an existing wall footing when conducting the following construction: When replacing an existing wall and its footing in distress due to settlement or design deficiencies.

When should you underpin a house?

Underpinning is when extra support is provided underneath a building due to subsidence. This can be to directly counter subsidence where your home is actually sinking, or it can be done pre-emptively if neighbouring homes have suffered from subsidence and you want to prevent it affecting your property.

Does underpinning affect insurance?

Most instances of subsidence are insured, and the cost of stabilising your property will be covered by your insurance. You won't be able to claim for underpinning if your property is experiencing subsidence while still covered by the new building warranty that typically comes with all new or recently built properties.

How do you backfill around a foundation?

When it comes to backfilling, free-draining backfill that's free of any construction debris will relieve hydrostatic pressure on the foundation walls, minimizing the burden on your foundation waterproofing. This backfill should be properly compacted with a cap layer that will shed bulk water away from the foundation.

What are the types of underpinning?

Following are the different underpinning methods used for foundation strengthening:

Mass concrete underpinning method (pit method)
Underpinning by cantilever needle beam method.
Pier and beam underpinning method.
Mini piled underpinning.
Pile method of underpinning.
Pre-test method of underpinning.

When should I underpin my foundation?

In construction or renovation, underpinning is the process of strengthening the foundation of an existing building or other structure. Underpinning may be necessary for a variety of reasons: The original foundation isn't strong or stable enough.

What's another word for underpinning?

Another word for underpinning. To bear the weight of, especially from below; keep from falling, sinking, or slipping: To bear or hold up (an amount of weight):

Do you need permit to fix foundation?

Depending on the nature of the repair, a building permit may or may not be required. A building permit is not required when the repairs are limited to excavation and application of damproofing/water-proofing coatings or membranes and/or the replacement of weeping tile systems.

Does Foundation Repair required permit?

Yes, if the city requires foundation repair permits, an engineer's report must be submitted. Be aware that in order for the contractor to get the permit to make repairs, they must submit a structural engineer's report to the city at the same time they apply for the permit.

What is SOE in construction?

Support of Excavation (SOE) Systems are temporary earth retaining systems intended to control the ground to facilitate a safe and efficient space for construction. In some instances the SOE System can double as permanent structural support.

How do you place a pin under a wall?

Underpinning Tips

The underpinning process must be started from the corners and the working inwards.
Underpinning must be made only on load-bearing walls.
Do not underpin below non-load bearing walls.
Start underpinning under a strip of footing.
After the excavation has been completed, add concrete to the cavity.

What is foundation underpinning?

Foundation underpinning is a repair process that strengthens foundations that have been weakened though a variety of factors. In the process of underpinning, the area underneath the load of the foundation is repaired or reinforced for a safer, more stable base.

Do I need to underpin?

Underpinning is only required when your property is experiencing subsidence actively. That is to say the ground is moving away and continuing to move away. If they remain the same, subsidence has come to a halt. Of-course do look out for new cracks which would suggest subsidence has not come to a halt.

Why do you underpin a house?

Underpinning is the process of providing extra support underneath a building to stop it subsiding into the ground. This is often the result of: subsidence, the home is sinking, which could be caused by many different factors.

What are signs of structural damage to house?

Signs of structural damage can include:

Bowed Walls.
Gaps where your walls and floors meet.
Drywall cracks, especially around door frames.
Nail pops.
Cracked basement walls – horizontal, stair-step or vertical.
Uneven or bouncy floors.
Sticking windows or doors.

Which cracks in walls are serious?

Vertical and horizontal cracks in drywall or plaster walls typically indicate drying and shrinkage, which is normal after construction. Jagged cracks, stair-step cracks and 45-degree angle cracks generally signify structural movement or settling issues that are occasionally serious but usually harmless.

Will subsidence devalue my house?

As it is, subsidence problems can force down the selling price of a house by up to 20 per cent. As the housing market softens, this situation can only get worse. Mortgage lenders will not touch properties that are uninsurable, which means the only potential purchasers are cash buyers who demand a sizeable discount.

Can you sell a house that has had subsidence?

If you had left the subsidence untreated, the only option for selling your home would be to a cash buyer, such as a property developer. Because you've had it remedied, you should be able to sell on the open market. Don't be tempted not to tell prospective buyers about the subsidence.

How much does resin underpinning cost?

The cost will vary on the piers to be placed which may cost about $1,500 to $3,000 each. All repairs for a house with moderate foundation damage may cost you around $9,000 to $12,000 but can go as high as $25,000 to $35,000.
