How does a channel Mosfet work?

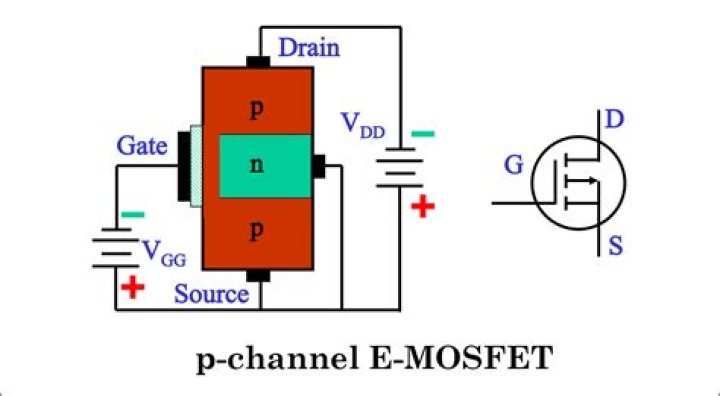

MOSFET structureIt works by varying the width of a channel along which charge carriers flow (electrons or holes). The charge carriers enter the channel at source and exit via the drain. The width of the channel is controlled by the voltage on an electrode is called gate which is located between source and drain.

Correspondingly, what is a Mosfet used for?

The MOSFET (Metal Oxide Semiconductor Field Effect Transistor) transistor is a semiconductor device which is widely used for switching and amplifying electronic signals in the electronic devices. The MOSFET is a three terminal device such as source, gate, and drain.

Also, how do MOSFETs fail? The cause of this failure is a very high voltage, very fast transient spike (which may be positive or negative going). If such a spike gets onto the drain of a MOSFET, it gets coupled through the MOSFETs internal capacitance to the gate. Once that has happened, the MOSFET explodes in a cloud of flame and black smoke.

how Mosfet can be used as a resistor?

A MOSFET can operate as a small-signal resistor if its gate and drain are shorted. The active resistor can be used in place of polysilicon or diffused resistor to produce a DC voltage drop and /or provide small signal resistance that is linear over a small range.

Can you test Mosfet in circuit?

Testing a MosFet. Connect the 'Source' of the MosFet to the meter's negative (-) lead. 1) Hold the MosFet by the case or the tab but don't touch the metal parts of the test probes with any of the other MosFet's terminals until needed. When MOSFETS fail they often go short-circuit drain-to-gate.

What are the two types of Mosfet?

There are two classes of MOSFETs. There is depletion mode and there is enhancement mode. Each class is available as n- or a p-channel, giving a total of four types of MOSFETs. Depletion mode comes in an N or a P and an enhancement mode comes in an N or a P.

Why Mosfet is voltage controlled device?

The MOSFET, like the FET, is a voltage controlled device. A voltage input to the gate controls the flow of current from source to drain. The gate does not draw a continuous current. Though, the gate draws a surge of current to charge the gate capacitance.

What are the characteristics of Mosfet?

MOSFET Characteristics

Cut-Off Region. Cut-off region is a region in which the MOSFET will be OFF as there will be no current flow through it.
Ohmic or Linear Region. Ohmic or linear region is a region where in the current I_DS increases with an increase in the value of V_DS.
Saturation Region.

Why it is called Mosfet?

Author has 84 answers and 9.2k answer views. MOS stands for Metal Oxide Silicon. In other words there is a terminal that connects to a small metal area on the surface of the chip that is electrically isolated from the silicon by a silicon oxide (glass) layer. FET stand for Field Effect Transistor.

Why Mosfet is used for high frequency application?

Also, because MOSFETs can operate at high frequencies, they can perform fast switching applications with little turn-off losses. When compared to the IGBT, a power MOSFET has the advantages of higher commutation speed and greater efficiency during operation at low voltages.

Where is Mosfet used?

MOSFET is a metal oxide semiconductor field effect transistor. It is a four terminal device that is used to switch electronic signals. It is a semiconductor device which is widely used for switching and amplifying electronic signals in the electronic devices.

How do you test a transistor?

Hook the positive lead from the multimeter to the to the EMITTER (E) of the transistor. Hook the negative meter lead to the BASE (B) of the transistor. For an good NPN transistor, you should see “OL” (Over Limit). If you are testing PNP transistor, the meter should show a voltage drop between 0.45V and 0.9V.

Who invented Mosfet?

In 1959, Dawon Kahng and Martin M. (John) Atalla at Bell Labs invented the metal–oxide–semiconductor field-effect transistor (MOSFET) as an offshoot to the patented FET design.

How can Mosfet be used to check analog multimeter?

The right way of testing an N-Channel MOSFET transistor is to use an Analog Multimeter. First, find out the Gate, Drain and Source from semiconductor replacement book or search its datasheet from search engine. Set to times 10K ohm range to check it. Put the Black Probe to the Drain pin.

How do you test a semiconductor?

Testing with a (Digital) DMMSet your meter to the diode test. Connect the red meter lead to the base of the transistor. Connect the black meter lead to the emitter. A good NPN transistor will read a JUNCTION DROP voltage of between .

Is Mosfet a diode?

1 Answer. Yes, power MOSFETs have a parasitic diode called Body Diode. As a result of this diode, a single MOSFET can work only as a unidirectional switch. A single MOSFET can't switch-off the opposite direction, because the diode conducts independent of the gate.

How Mosfet acts as a diode?

MOS as Diode: When the gate of the MOSFET is connected to the drain, it acts like a diode with characteristics similar to a pn-junction diode. 5. Since VT is always greater than zero for an enhancement device, then VDG = 0 satisfies the conditions for saturation. MOSFET acts in non-saturation region.

How Mosfet works as an amplifier?

MOSFET is basically a transistor which uses field effect. MOSFET stands for Metal Oxide Field Effect Transistor, which has a gate. Depending on this gate voltage we can change the conductivity and thus we can use it as a switch or as an amplifier like we use Transistor as a switch or as an amplifier.

What is poly resistor?

silicide resistorDiffusion resistors are made with n- or p- diffusions in the substrate. Poly resistors are made with the poly layer. Poly resistors tend to have much higher sheet resistivity than diffusion resistors.

What is active resistor?

Active resistor circuits represent complex structures, implemented using exclusively MOS transistors that are functionally equivalent with a classical resistor, being able to simulate, between two input pins, a linear current–voltage characteristic.
