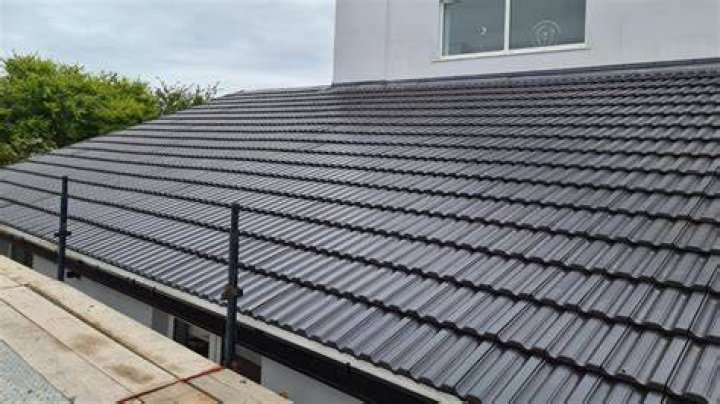

What are low pitch roof tiles?

Minimum Pitch for Tiled RoofsPitched roofs are often considered low pitch when they're between 10° and 35°. All of the low pitch roof tiles offered in this range of products can be used down to 10°, with anything less than 10° being considered a flat roof.

Beside this, what is a low pitch roof?

A roof that is nearly flat or slightly pitched is called a flat roof or low slope roof – No roof should be dead flat because it must have at least a slight slope to drain. A low-slope roof is one that has a slope of less than 3-in-12.

Beside above, what pitch does a roof have to be? For most home styles, roof pitches fall in a range 4/12 (a moderate) slope up to 8/12 (fairly steep). Examples of extreme slopes range from 1/4/ 12 (almost flat) to 12/12 (sloping down at a perfect 45-degree angle).

Also know, what is the minimum pitch for Marley modern tiles?

17.5°

What is the best roofing material for a low pitch roof?

In general, standard asphalt shingles or slate shingles used in moderate to high-pitched roofs cannot sustain the health of a low-pitched roof. To ward off drainage problems, homeowners must turn to roofing systems that can be sealed.

Are metal roofs good for low pitch roofs?

Low-slope metal roofs require less material, which reduces the overall load on the building's structure. Low-slope roofs are not totally flat, their roof slope generally ranges from 1/4:12 to 3:12. “Conventional structures with a steel deck with rigid installation under the metal roof provide the best results.

What does a 4/12 pitch look like?

A 4/12 roof pitch indicates the roof rises 4 inches in height for every 12 inches, as measured horizontally from the edge of the roof to the centerline. The gentle slope of a 4/12 pitch roof falls on the cusp between low-pitch and moderate-pitch.

What is a disadvantage of low slope roofs?

Disadvantage: Limited MaterialsLow slope roofs change how water flows off of the structure. High pitched roofs don't let water sit, so asphalt shingles and other materials that overlap work well. On a roof with a lower pitch, standing water soaks between these materials.

What is the minimum pitch for a metal roof?

3:12

What do you put on low pitch roof?

The flat roofing materials most appropriate to these shallow-sloped roofs include: Built-up roofing: Sometimes called tar-and-gravel, or BUR, the modern form of this kind of roof consists of alternating layers of bitumen and reinforcing fabrics.

What is a 4 sided roof called?

A mansard roof, also known as a French roof, is a four-sided roof with a double slope on each side that meet forming a low-pitched roof. Pros: Mansard roofs can help create a great deal of extra living space. Using the space as a full attic or living quarters, called a garret, is very popular.

What kind of roof do I need for a 2 12 pitch?

A pitch of 2/12 is the minimum pitch for shingles made of asphalt, so your roof just barely makes the cut-off for one of the most popular roofing material options. Resilient asphalt shingles lie much flatter to the substrate than slate, tile and concrete, which keeps water from being easily blown under them.

What is the minimum pitch for concrete roof tiles?

As a general rule, 15° is the minimum pitch for concrete tiles which has decreased from the original recommended level of 20°. Additionally, there are some concrete tiles available that can be laid as low as 10° although these are not too commonly used.

What is the minimum pitch of a slate roof?

Although BS 5534 recommends a minimum pitch of 20°, SSQ has developed a successful slate roofing system that allows the roof's pitch to be reduced to 17.5° generally and under some circumstances, as low as 15° in areas considered to be 'unexposed'.

What is the minimum pitch for plain tiles?

35°

What is the minimum slope for a clay tile roof?

The International Residential Code (IRC) specifies a minimum 4/12 pitch (4 inches of vertical rise for every 12 inches of horizontal run) for a clay or concrete tile roof, except that a pitch as low as 2-1/2/12 is allowed when two layers of underlayment are applied.

What roof pitch is 15 degrees?

Roof Pitch and Corresponding Angles

Roof Pitch (slope)	Roof Angle (degree)
13:12 Pitch	47.29°
14:12 Pitch	49.40°
15:12 Pitch	51.34°
16:12 Pitch	53.13°

Can a flat roof be tiled?

Yes it is possible to install slabs or tiles on top of an EPDM flat roof. There are a couple of options here depending on the type of decorative finish you require and the design of slab. 1) A slab support can be used underneath the concrete slabs placed directly on the EPDM rubber membrane.

How much do concrete roof tiles weight per m2?

Due to the materials that go into making concrete tiles – cement, sand and water – they are considerably heavier than clay tiles. The weight will vary depending on the manufacturer but concrete tiles generally weigh upwards of 70kg per m².

Is a 5/12 roof pitch common?

As per imperial system of measurements, rafter pitch is expressed in rise then run, dominated by a number 12 that gives a ratio for number of inclines per 12 inches of run; the most common examples are 3:12, 5:12 etc. Low Pitched Roofs:When we keep the pitch of the roof below 3 ½, they are called low-pitched roofs.

What is a 4/12 pitch?

A 4/12 roof pitch indicates the roof rises 4 inches in height for every 12 inches, as measured horizontally from the edge of the roof to the centerline. The gentle slope of a 4/12 pitch roof falls on the cusp between low-pitch and moderate-pitch.

How do you increase the pitch of a roof?

Use prefabricated trusses to put a new pitch on the roof. Give the width and length of the roof and a chosen pitch to a truss supplier to build trusses to order. Use at least a 6/12 pitch, rising 6 inches per foot of slope, to provide attic storage; get special attic roof trusses to make a room inside the new roof.
