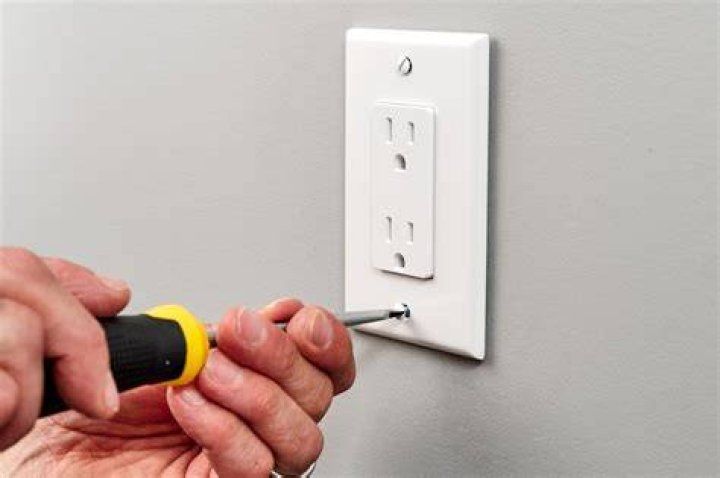

What do I need to install an outlet?
Ava Bailey - Wire Connectors (or Wire Nuts)
- Wire (14-2G AWG)
- Outlet (15 AMP)
- Outlet Face Plate.
- “Old Work” Electrical Box. "New Work" electrical boxes are used when the drywall is not installed and the electrical box can be attached directly to the studs within the wall.
.
Likewise, is it easy to add an electrical outlet?
You can add a new outlet quickly and easily without tearing open a wall, if you already have an electrical outlet in the other side of the wall. No extra holes. No messy patching and repainting.
One may also ask, what happens if you wire an outlet backwards? This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it's usually an easy repair. The other wire doesn't get connected to the earth, and it's called the ungrounded conductor, or hot wire.
Subsequently, question is, how much does it cost to install an electrical outlet?
The national average to install or replace an electrical outlet is $208. A new one can cost as little as $75 or as much as $485. The project typically ranges from $132 and $287. Each receptacle unit will cost between $3 and $50 depending on the type you need.
Can I wire lights and outlets on the same circuit?
An option for you if you don't want two switches is just to use a blank face plate (check this question). Basic answer to your question of can a mixture of lights and receptacles be installed on a single circuit is yes. The neutral will be white but some switches are wired up with a white wire that is not a neutral.
Related Question Answers
Can I mix 12 and 14 gauge wire?
mixing 14-gauge NM and 12-gauge. both 14 and 12 gauge will be protected by a 15A breaker. Code states that 14Ga will be protected by an overcurrent device of not more than 15A and 12GA by 20A. 14 and 12 are both ok behind a 15amp breaker, but you must use one or the other and not both.Which is the hot wire on a 3 prong plug?
The color code is standard in electrical wiring. The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.Why are my outlets upside down?
Because if a cord or wire were to fall down on a partially plugged in right-side up outlet you would short out between the hot and the neutral. When the outlet is "upside down" in the above situation the wire would touch ground first.How do you wire a 240 volt outlet?
A 3-wire, 240-volt circuit has two hot wires—each supplying 120 volts for a total of 240—and an equipment ground wire. A 120-volt circuit has only one hot wire connected to the breaker plus a neutral wire connected to the neutral bus bar in the service panel.How many outlets can be on a 15 amp circuit?
10 outlets
Should I wire outlets in series or parallel?
It's common to describe household wall receptacles that are wired together using the device terminals as wired in series. But, in fact, all household receptacles are always wired in parallel, and never in series. In a series circuit, current must pass through a load at each device.Can I run a light switch from an outlet?
Wiring a Switch to a ReceptacleRun a cable to the light fixture and another cable to the outlet from which you're drawing power. Turn off the power to the outlet, and before making connections, test the leads with a voltage tester to make sure they're dead. At the outlet, you connect the cable to the load terminals.How many wires can you connect to an outlet?
Counting Wires in Electrical BoxesEach insulated wire, all cable clamps combined, all uninsulated wires combined, and each support for light or other fixture count as one wire. Each switch, outlet, or other device counts as two wires.How do I install a new breaker?
Installing a New Breaker- Power down. Shut off your branch circuit breakers one at a time.
- Remove the panel cover. Unscrew the panel cover to gain access to the breakers.
- Loosen the terminal screws. Turn the screws until the terminal and wires are loose.
- Remove the breaker.
- Install your new breaker.
- Power up.
