What do you mean by ER model?
Ava Bailey news

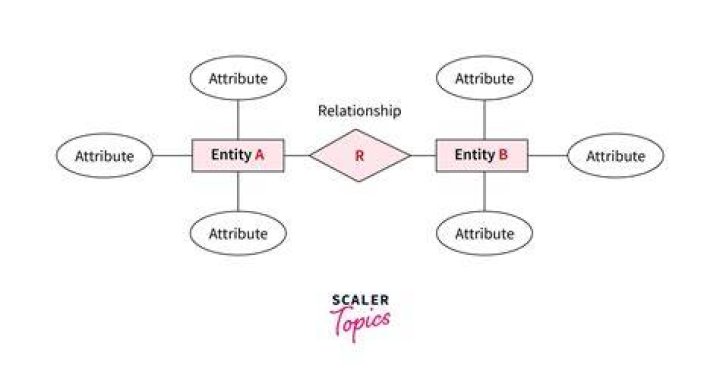

entity-relationship diagram
.
Thereof, what is ER model explain with example?
Entity Relationship Modeling (ER Modeling) is a graphical approach to database design. It uses Entity/Relationship to represent real world objects. For example each employee of an organization is a separate entity. Following are some of major characteristics of entities. An entity has a set of properties.
what is the requirement of ER diagram? Entity relationship diagrams are used in software engineering during the planning stages of the software project. They help to identify different system elements and their relationships with each other. It is often used as the basis for data flow diagrams or DFD's as they are commonly known.
Likewise, why do we use ER diagram?
Database troubleshooting: ER diagrams are used to analyze existing databases to find and resolve problems in logic or deployment. Drawing the diagram should reveal where it's going wrong. Business information systems: The diagrams are used to design or analyze relational databases used in business processes.
What are different types of attributes?
Types of attributes in DBMS with example
- ATOMIC ATTRIBUTE.
- COMPOSITE ATTRIBUTE.
- SINGLE VALUED ATTRIBUTE.
- MULTI VALUED ATTRIBUTE.
- STORED ATTRIBUTE.
- DERIVED ATTRIBUTE.
- NULL VALUED ATTRIBUTE.
- KEY ATTRIBUTE.
Related Question Answers
What is cardinality and its types?
What is cardinality, Types With Example IN DBMS. It's not common; however cardinality conjointly sometimes refers to the relationships between tables. Cardinality between tables is often one-to-one, many-to-one or many-to-many. High cardinality columns are those with terribly distinctive or uncommon information values.What are the components of ER model?
ER Model is used to model the logical view of the system from data perspective which consists of these components:- Entity, Entity Type, Entity Set –
- Attribute(s):
- Relationship Type and Relationship Set:
- Degree of a relationship set:
- Cardinality:
- Participation Constraint:
- Weak Entity Type and Identifying Relationship:
What is entity and its types?
An entity can be of two types: Tangible Entity: Tangible Entities are those entities which exist in the real world physically. Example: Person, car, etc. Intangible Entity: Intangible Entities are those entities which exist only logically and have no physical existence. Example: Bank Account, etc.What is data model in DBMS?
Data models define how the logical structure of a database is modeled. Data Models are fundamental entities to introduce abstraction in a DBMS. Data models define how data is connected to each other and how they are processed and stored inside the system.What is meant by class diagram?
A class diagram is an illustration of the relationships and source code dependencies among classes in the Unified Modeling Language (UML). In this context, a class defines the methods and variables in an object, which is a specific entity in a program or the unit of code representing that entity.What is Chen notation?
"Chen's notation for entity–relationship modeling uses rectangles to represent entity sets, and diamonds to represent relationships appropriate for first-class objects: they can have attributes and relationships of their own. If an entity set participates in a relationship set, they are connected with a line.What is key DBMS?
A DBMS key is an attribute or set of an attribute which helps you to identify a row(tuple) in a relation(table). They allow you to find the relation between two tables. Keys help you uniquely identify a row in a table by a combination of one or more columns in that table. Example: Employee ID.What are the components of ER diagram?
There are five main components of an ERD:- Entities, which are represented by rectangles.
- Actions, which are represented by diamond shapes, show how two entities share information in the database.
- Attributes, which are represented by ovals.
What are the symbols used in ER diagram?
ERD attribute symbols
| Name | Description |
|---|---|
| Multivalued attribute | Multivalued attributes are those that are can take on more than one value. |
| Derived attribute | Derived attributes are attributes whose value can be calculated from related attribute values. |
| Relationship | Relationships are associations between or among entities. |
What do you mean by cardinality?
In the context of databases, cardinality refers to the uniqueness of data values contained in a column. High cardinality means that the column contains a large percentage of totally unique values. Low cardinality means that the column contains a lot of “repeats” in its data range.What is a database diagram?
Database schema. The term "schema" refers to the organization of data as a blueprint of how the database is constructed (divided into database tables in the case of relational databases). The formal definition of a database schema is a set of formulas (sentences) called integrity constraints imposed on a database.What is entity type in DBMS?
Key concepts: Entity, attribute, and entity type. Entity type. A person, organization, object type, or concept about which information is stored. Describes the type of the information that is being mastered. An entity type typically corresponds to one or several related tables in database.What is entity set?
An entity set is a set of entities of the same type (e.g., all persons having an account at a bank). Entity sets need not be disjoint. For example, the entity set employee (all employees of a bank) and the entity set customer (all customers of the bank) may have members in common.What is primary key in ER diagram?
The primary key is an attribute or a set of attributes that uniquely identify a specific instance of an entity. Every entity in the data model must have a primary key whose values uniquely identify instances of the entity.What is total participation in ER diagram?
Total Participation − Each entity is involved in the relationship. Total participation is represented by double lines. Partial participation − Not all entities are involved in the relationship. Partial participation is represented by single lines.Is a relation in ER diagram?
An ERD contains different symbols and connectors that visualize two important information: The major entities within the system scope, and the inter-relationships among these entities. And that's why it's called "Entity" "Relationship" diagram (ERD)!What does N mean in ER diagram?
one-to-many
How do you identify entities and attributes?
Attributes that identify a person would include such things as social security number or any combination of letters and numbers that uniquely identify a person.- Attributes that describe entities are called non-key attributes.
- Attributes that identify entities (entity identifiers) are called key attributes.
