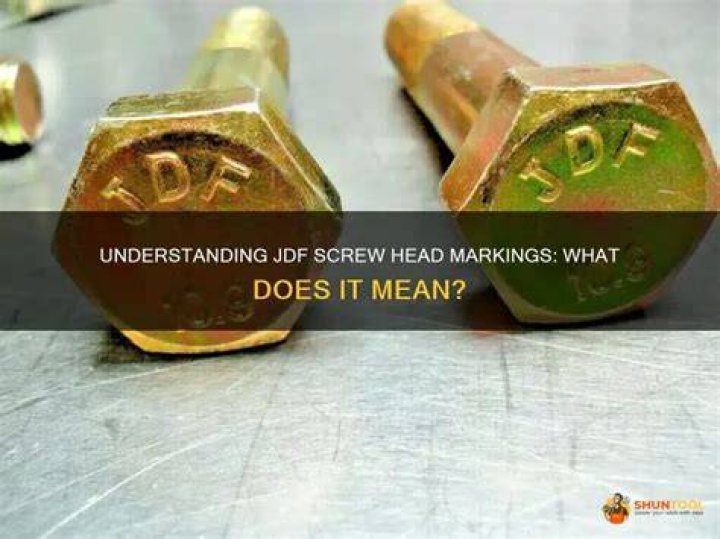

What does JDF mean on a bolt?

Socket Head Cap ScrewsA standard inch series socket head cap screw is 20% stronger than a Grade 8 hex head cap screw and 50% stronger than a Grade 5 hex cap screw.

Keeping this in consideration, what does the mean on a bolt?

The lines on the head of a bolt indicate its grade. SAE J429 (Society of Automotive Engineers) bolts have radial lines, whereas ASTM (American Society for Testing and Materials) uses a combination of letters and numbers to indicate the grade.

is a 10.9 Bolt stronger than Grade 8? Zinc plated for moderate corrosion resistance. A tempered medium carbon steel. Class 10.9 is stronger than class 8.8, and is commonly found in high strength automotive applications. Class 10.9 is similar to grade 8.

Also asked, what does the triangle symbol mean on a bolt?

RE: Grade 8 Bolt Marking Symbol CoryPad (Materials) 26 Mar 07 15:58. The triangle is the manufacturers identification.

What are the markings on a bolt head?

Bolt heads and nuts are often marked with numbers, letters, dashes, slashes, dots, or an assortment of other marks. Fasteners commonly have two different markings: a unique manufacturer identification symbol – such as letters or an insignia – and information about the fastener strength.

What does M stand for in bolt sizes?

metric

What does 8.8 mean on a bolt head?

If you have ever looked a metric hex bolt you might notice the markings 8.8, 10.9 or 12.9 this does not mean grade 8,10 or 12. The grade 8.8 refers to the tensile strength which is generally 116,000 psi, grade 10.9 is generally 150,000 and grade 12.9 is generally 175,000 psi.

What does number on bolt head mean?

In addition, most metric bolts are identified by a number stamped on the bolt head, such as 4.6, 5.8 or 10.9. The number has nothing to do with the size, but does indicate the relative strength of the bolt. The higher the number, the stronger the bolt.

What does f593c mean?

F593C bolts are austenitic stainless steel bolts manufactured from 304 Stainless Steel. F593C Screws are used for high temperature service. Torqbolt is a prominent F593C screw supplier in India. Type 304 Stainless Steel.

What is a #10 screw?

The term 10-32 comes from Unified and American Screw Threads for Bolts, Nuts, and Machine Screws standards published by ANSI B1. 1-1974. The number “10” is simply a size designator with no numerical meaning. The number “32” refers to 32 threads per inch.

How do you identify a fastener?

Flat head, Pan head, Truss head, etc.

Material. Fastener material describes the material from which the fastener was made as well as any material grade.
Diameter. Fasteners diameter is measured either as a size number or as a direct measurement.
Length.
Thread Pitch or Count.

What grade is a 307a bolt?

Grade 1

What does Uh mean on a bolt head?

Under Head

What does CW mean on a bolt head?

Cold Worked

What is the difference between Grade 5 and Grade 8 bolts?

Grade 8 bolts have been hardened more than grade 5 bolts. Thus they are stronger and are used in demanding applications such as automotive suspensions. Grade 8 bolts have 6 evenly spaced radial lines on the head. Grade G is roughly equivalent to Grade 8.

What does the grade of a bolt mean?

When a bolt has a grading of S, it means that it can withstand a stress of 45 to 49.9 metric tonnes per 6.45 cm². This grading, which is typically stamped on the head of the bolt, has the same tensile strength as a grade 8.8 bolt.

Is 8.8 bolt high tensile?

Grade 8.8 high tensile steel is often referred to as the structural grade for bolts. It is the most common form of high tensile material and is usually stocked in plain finish or zinc. It can be plated in many other coatings.

What does 12.9 on a bolt head mean?

The 12.9 is the Class head marking under ASTM F568M standard for Bolts of a high grade (1220 MPa), being Alloy steel, quenched and tempered. ASTM F568M is an ASTM International standard for metric bolts, screws and studs that are used in general engineering applications.

What is the difference between a 10.9 and 12.9 Bolt?

Hex bolts, screws and studs property classes is consists of two numbers which is separated by a decimal point like 8.8, 10.9, 12.9, 14.9 etc.

DIN 912 Socket Cap Screws.

Property Class	12.9
Tensile Strength (Mpa)	1,220 min.
Yield Strength at 0.2% Offset (Mpa)	1,100 min.
Elongation (%)	8 min.

What is the tensile strength of a 10.9 bolt?

Thus, the 10.9 bolt has an approximate yield strength of 900 MPa (940 MPa by specification).

How strong is a grade 12.9 bolt?

The minimum tensile strength of a 12.9 bolt is 1220 MPa. Therefore, the approximate shear strength of a 12.9 bolt is 732 MPa. The minimum yield strength of a bolt is the pressures needed to stretch the metal of the bolt. A 12.9 bolt has a minimum yield strength of 1100 MPa.
