What is a steam condensate line?
Emma Newman updates
Condensate lines will contain two phases, condensate (liquid) and flash steam (gas.) Therefore, the correct size of a condensate line is somewhere between a hot water line and a steam line. With proper knowledge, a condensate line may be sized for the following: Condensate liquid load. Flash steam load.
.
Likewise, what is steam condensate?
Condensate is the liquid formed when steam passes from the vapor to the liquid state. In a heating process, condensate is the result of steam transferring a portion of its heat energy, known as latent heat, to the product, line, or equipment being heated.
Likewise, what is a steam line? steam line - a pipe conducting steam. steam pipe. pipage, pipe, piping - a long tube made of metal or plastic that is used to carry water or oil or gas etc.
Considering this, how does steam and condensate work?
Steam is formed when water vaporizes to form a gas. This energy given to convert a liquid into a gas is called 'latent heat'. Steam-based heating processes use latent heat and transfer it to a given product. When the work is done (i.e. steam has given up its latent heat), steam condenses and becomes condensate.
How far will steam push condensate?
Steam Condensate Lift using an On-Off Control Scheme The back pressure created by lift is approximately 1 PSIG for every 2 feet of condensate lift. The actual number is 2.31 feet per pound, but 2 feet includes some safety factor and allowance for friction loss.
Related Question Answers
What is the difference between steam and condensate?
Condensate is the liquid formed when steam passes from the vapor to the liquid state. In a heating process, condensate is the result of steam transferring a portion of its heat energy, known as latent heat, to the product, line, or equipment being heated.Is water a condensate?
Properties of Condensate. Steam that has been condensed back into water by either raising its pressure or lowering its temperature. Not to be confused with demineralized, de-ionized, make up, or softened water.How does a condensate system work?
The condensate system includes anywhere that the steam condenses to form liquid water. As the vapor leaves the low-pressure turbine it contains droplets of water. Cooling water causes condensation of the steam to water by removing the latent heat.Can steam cause corrosion?
CORROSION IN THE STEAM HEATING SYSTEMSPure water definitely does not cause any corrosion itself, which means if we come across with incrustation in a steam heating system; the reason is the dissolved materials in the condensate that reacted with the metal surfaces.How steam is generated?
Steam is water in the gas phase. It is commonly formed by boiling or evaporating water. Steam that is saturated or superheated is invisible; however, "steam" often refers to wet steam, the visible mist or aerosol of water droplets formed as water vapour condenses.How do you size a steam condensate pipe?
When sizing condensate return lines in steam distribution system - remember that the maximum condensate flow is achieved during plant start up when pipes and equipment are heated up. A rule of thumb - the condensate load used to design condensate pipe lines should be twice the maximum production load.What is the condensation point of steam?
At 100℃ it boils, thus rapidly evaporating. And at boiling point, the invisible gas of steam is created. The opposite of evaporation is condensation, which is when water vapor condenses back into tiny droplets of water. Those drops of water are called condensation.How do you calculate condensate return?
system. One simple way would be if you had both a makeup and a feedwater meter. The difference of the two numbers divided by the feedwater multiplied by 100% would be the percent condensate return (of feedwater).What are the three types of steam traps?
Steam traps can be divided into three different types based on their operating principles:- Mechanical Steam Traps.
- Thermodynamic Steam Traps.
- Thermostatic Steam Traps.
- Applications Suited to the Free Float® Type.
- Applications Suited to the Disc-Type.
- Applications Suited to the Thermostatic Type.
How many types of steam are there?
Now, coming to the types of steam there are basically three types of steam based on their states which are as follows: Wet steam (Saturated steam) Dry steam (Dry saturated steam) Superheated steam.Why do we use steam trap?
Simply stated, steam traps are used to remove condensate and non-condensable gases from the steam network. Steam generated by a boiler contains heat energy which is used to heat the product. Presence of condensate in a steam system can also cause physical damage due to water hammer or corrosion.What type of pipe is used for steam?
Pipes for steam systems are commonly manufactured from carbon steel ASTM A106. The same material may be used for condensate lines, although copper tubing is preferred in some industries.What is thermodynamic steam trap?
The thermodynamic trap is an extremely robust steam trap with a simple mode of operation. The trap operates by means of the dynamic effect of flash steam as it passes through the trap, as depicted in the image below. The only moving part is the disc above the flat face inside the control chamber or cap.How do you size a steam trap?
A sizing factor is added in the condensate capacity to determine the correct steam trap capacity selection for effective operation.- Typical Sizing Factors.
- Pressure drop across the unit heater = 5 psig.
- Rise in condensate piping after the steam trap (distance of six feet) =
- P2 = 5 psig + 3 psig.

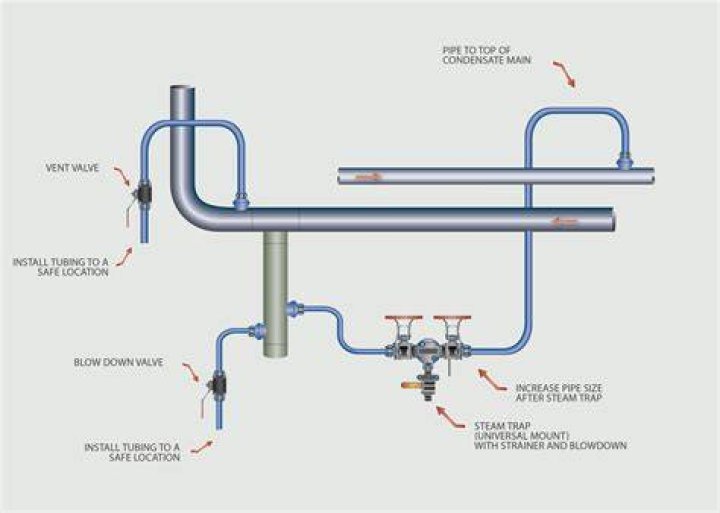

Where is steam trap installed?
Locate the steam trap below the lowest condensate discharge point of the equipment. Never install a rise in the pipe ahead of a steam trap. Check valves should be installed after the steam traps in most applications. Develop and maintain installation standards for all applications.What happens when a steam trap fails?
Failed traps will prevent proper operation of sensitive equipment. When steam traps fail in a closed position, over time, the stagnant condensate will turn to carbonic acid (co3). In some cases water hammer can occur when a portion of the steam condenses into water within steam piping.How do steam systems work?
In steam heating systems, a boiler furnace heats water by means of a gas or oil-fired burner and turns it into steam. The steam travels through pipes to radiators or convectors, which give off heat and warm the room. As the steam cools, it condenses back into water, and returns to the boiler to be heated again.How hot are steam pipes?
about 215 degrees F.
