What is a thermostat deadband?

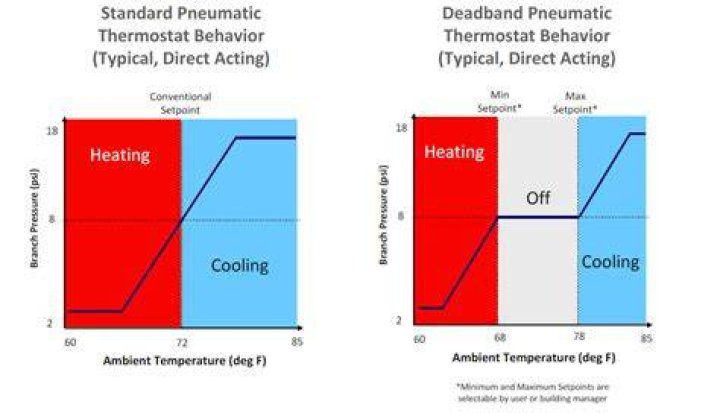

On thermostats that automatically control both heating and cooling systems, a deadband is a temperature range in which neither system turns on. The deadband prevents the thermostat from activating heat and cooling in rapid succession.

Similarly one may ask, what is a setpoint deadband?

Deadband. The deadband represents a temperature range around the AUTO mode set point that is your “comfort zone”. For example, with a 4° wide deadband and a setpoint of 70°, the deadband will be 68° - 72°. This keeps the system from bouncing quickly between heating and cooling when in AUTO mode.

what causes deadband? Deadband happens when the valve needs to change direction. To compensate for deadband, the controller must send additional output, which can cause the valve to overshoot its target position. This in turn causes the process to overshoot its setpoint.

Simply so, what is deadband control?

A deadband or dead band (also known as a dead zone or a neutral zone) is a band of input values in the domain of a transfer function in a control system or signal processing system where the output is zero (the output is 'dead' - no action occurs).

What should a thermostat differential be set at?

However, most thermostats will be pre-set at a 1-, 2-, or 3-degree differential. Newer, smart thermostats paired with a smart, high-efficiency HVAC system are likely to be set at the 1-degree differential. Older systems are more likely to be set at higher differentials.

What is auto changeover deadband?

On thermostats that automatically control both heating and cooling systems, a deadband is a temperature range in which neither system turns on. The deadband prevents the thermostat from activating heat and cooling in rapid succession.

What is auto changeover thermostat?

Sensi thermostat has a feature called Auto Mode, which allows the thermostat to switch from Heat to Cool, or Cool to Heat automatically. Select “Auto” to allow the thermostat to switch between heating and cooling based on room temperature and the selected heating and cooling set points.

What is the setpoint on a thermostat?

Set Point is the temperature you have “set” your thermostat to maintain. An ideal set point for summer is 78 degrees, while an ideal set point for winter is 68 degrees.

What is temperature differential on air conditioner?

Temperature Differences between Inside and Outside AirGenerally speaking an air conditioning system is designed to accommodate up to a 20 degree difference between the outside air and inside air while still keeping around a 55% humidity level which is comfortable.

What is a temperature differential?

What is the temperature differential setting? Your thermostat is equipped with an adjustable temperature differential setting which will determine how much your system cycles. The lower the differential setting, the more your system will cycle and the tighter the temperature will remain.

What is thermostat swing value?

A thermostat works by turning your heating or cooling system on and off whenever the room temperature varies a certain number of degrees from the set-point. This variation is the “swing”. A larger swing number (#9 for example) decreases the number of cycles per hour.

What is the deadband of a switch?

Deadband is the difference in pressure between the switch setpoint and reset point. For example, if a pressure switch is set to activate at 100 psi on an increasing pressure, the switch will close when the pressure rises to 100 psi.

What is the differential of a thermostat?

The temperature difference that a thermostat turns on and off a HVAC unit is called Differential. For example, a thermostat with a +-1 degree differential that is set at 70 degrees will turn an air conditioner on at 71 degrees and off at 69 degrees.

Why does the dead zone exist in motor operation?

Dead-zone is a static relationship between the actuator input and the actuator output , in which for a range of input values the output is zero, while for the input is outside of this band, the output appears and is a function of the input, where the slope between the input and the output is constant (linear model) or

What is deadband in PID?

Deadband (read/write) The Deadband creates a “window” in which the PID controller maintains the system output. Generally, as long as the Process Variable (PV) is within this Deadband “window”, no corrective measures are taken by the PID controller.

What is hysteresis in control valves?

When related to a valve, hysteresis is the difference between the valve position on the upstroke and its position on the down stroke at any given input signal. For it to be true hysteresis the valve will be moving at all times. Hysteresis is most often caused by a high degree of static friction within the valve.

What is Governor deadband?

Dead band is the change in speed required before the governor will make a corrective movement of the throttle. In other words, Dead band is speed of fluctuation around the steady state speed, in which governor will not initiate corrective action.

How cool should my house be if it's 100 outside?

More specifically, for our area, most systems are designed to lower your indoor temperature about 20^°F from the outdoors. So, on days when it's 100^°F outside, and your system is running at its peak efficiency, your indoor temperature will likely never maintain a level lower than about 80^°F.

What does cycles per hour mean on a thermostat?

The standard for electric heat is nine cycles per hour. The longer it takes the system to emit all its heat, the longer a cycle should be. Of course the longer the cycles, the fewer there are in an hour. For forced air, you don't change anything because the thermostat comes set for five or six cycles per hour.

What is switching differential?

The switching differential lies below the setpoint. This means that the controller switches off precisely then when the setpoint is exceeded. It only switches on again when the process value has fallen below the switch-on point, which lies below the setpoint by the amount of the switching differential.

What is the dial inside my thermostat?

That dial is the heat anticipator. What it does is it makes the thermostat stop calling for heat before the room gets too warm. It prevents heating overshoot. When the heat is on the stove is hot therefore when the thermostat stops calling for heat the stove still has to cool down and expel the heat into the room.
