What is galvanometer give its construction and working?

A galvanometer is an electromechanical instrumentused for detecting and indicating an electric current. Agalvanometer works as an actuator, by producing a rotarydeflection (of a "pointer"), in response to electric currentflowing through a coil in a constant magnetic field.

Herein, what is galvanometer and its uses?

Galvanometer is used for detecting and measuringelectric current. The most common use ofgalvanometers was as analog measuring instruments, calledammeters, used to measure the direct current (flow of electriccharge) through an electric circuit.

what is the unit of galvanometer? A galvanometer, or moving-coil meter has thebasic unit of micro-amps. It is often that these meters aresold as 'movements' with a rating of FSD (full scale deflection) inmicro-amps or 1 mA and a given internal resistance. Typical valuesare 50uA, 100uA and 1mA with an internal resistance of typically1900 ohms.

Accordingly, what is the basic principle of a moving coil galvanometer?

The principle behind moving coilgalvanometer is that when current carrying coil issuspended in a uniform magnetic field it is acted by the torque. Soit can be said that the deflection in the coil in amoving coil galvanometer is directly proportional to thecurrent flowing through the coil.

Is ammeter and galvanometer same?

The ammeter is an electronic device which isconnected in series with the circuit for measuring the currentflows through it. The construction of the galvanometer issame as that of the ammeter the only difference isthat the ammeter has additional resistance connected inparallel with the circuit.

Does galvanometer have resistance?

The galvanometer coil has a moderateresistance (about 100 ohms) and the galvanometeritself has a small current carrying capacity (1mA).

What is the working of galvanometer?

What is the function of galvanometer?

Galvanometer, instrument for measuring a smallelectrical current or a function of the current bydeflection of a moving coil. The deflection is a mechanicalrotation derived from forces resulting from thecurrent.

What is the use of moving coil galvanometer?

The torque on a current loop in a uniform magnetic fieldis used to measure electrical magnetic field is usedto measure electrical currents. This current measuring device iscalled a moving coil galvanometer. Thus the deflectionø of the galvanometer is proportional to the electriccurrent I passing through it.

How does a moving coil galvanometer work?

Moving coil galvanometer is a very sensitiveinstrument used to measure the small currents of the order 10^-9 A.Here the galvanometer gives the deflection which isproportional to the electric current flowing through it.Galvanometer works on the principle of conversion ofelectrical energy into mechanical energy.

What is galvanometer and its types?

TYPES OF GALVANOMETERThere are various types of galvanometer.They are- Tangent Galvanometer: it works by using a compassneedle to compare the magnetic field generated by an unknowncurrent to the magnetic field of the Earth. It was usedearlier.

Why is it called moving coil galvanometer?

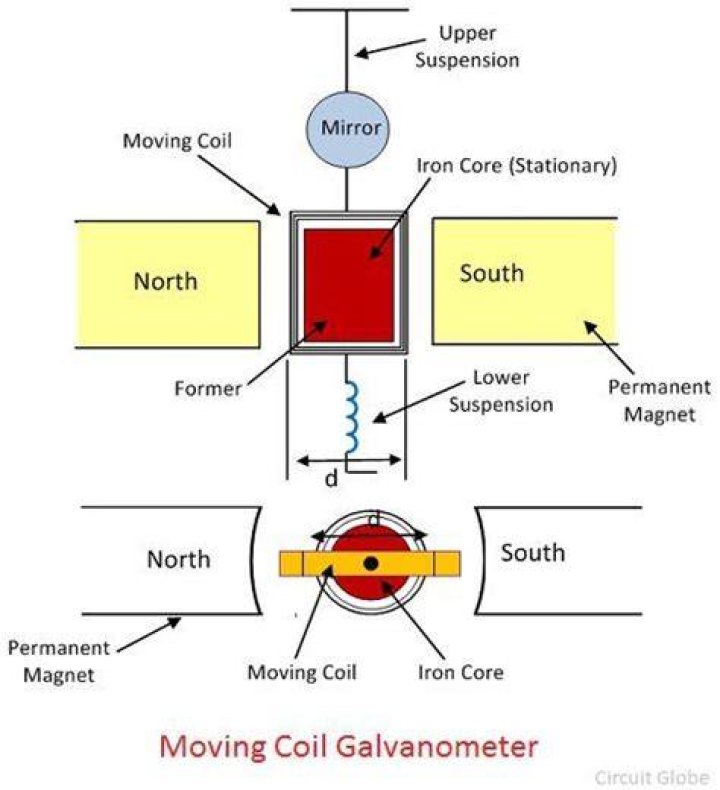

The name ' Moving Coil Galvanometer ' can betraced from the way it works . A moving coil galvanometerconsists of a coil having many turns . This coil issuspended from a torsional head and is free to rotate . It issubjected to a uniform radial magnetic field .

What is current sensitivity?

Current sensitivity : It is defined as thedeflection of coil per unit current flowing in it.Current Sensitivity, Voltage sensitivity : It isdefined on the deflection of coil per unit potential differenceacross its ends.

What is a moving coil meter?

The moving-coil meter movement, whichrelies on current passing through a coil to move thecoil in a magnetic field. Moving-coilinstruments measure current, and any moving-coilmovement will have its value of FSD current marked, along with theresistance of the coil.
