What is simple carburetor?

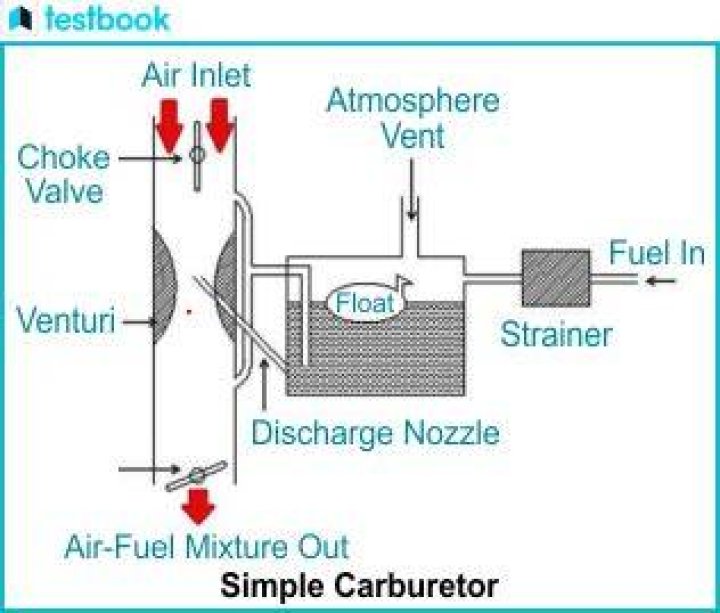

What is a simple carburetor? A simple carburetor consists of different parts such as the float chamber, main fuel jet, venturi, jet tube, and throttle valve. Where there is a float in the float chamber. With the help of a fuel pump, fuel is supplied to the float chamber from the fuel tank through the strainer.

Moreover, how does a simple carburetor work?

Simple carburetor. The function of a carburetor is to vaporize the petrol (gasoline) by means of engine suction and to supply the required air and fuel (petrol) mixture to the engine cylinder. As the fuel and air pass ahead of the venturi, the fuel gets vaporized and required uniform mixture is supplied to the engine.

Also, what is the use of carburetor? A carburetor is a device which helps in mixing fuel and air together for facilitating internal combustion inside an internal combustion engine.

Likewise, what are the 3 types of carburetors?

There are three general types of carburetors depending on the direction of flow of air.

Types of Carburetors.
Constant Choke Carburetor:
Constant Vacuum Carburetor:
Multiple Venturi Carburetor:

How much is a carburetor?

Contacting a professional Depending on the extent of service that needs to be performed, this type of service typically costs around $200 to $300. If your carburetor needs to be replaced, it may run you between $500 and $800 total.

How do you fix a carburetor?

How to Repair Small Engines: Cleaning the Carburetor

Step 1: Diagnose the problem. Photo 1: Test for gas at the carb. Clamp off the fuel line.
Step 2: Remove the carburetor. Photo 2: The carb comes off easily. Use a socket or nut driver to remove the two bolts that hold the carburetor to the engine.
Step 3: Rebuild the carburetor. Photo 4: Dissect the carb on your workbench.

How do you tune up a carburetor?

Carb Quick Guide

Verify carburetor is set to stock settings:
Start bike, bring to operating temperature.
Set idle speed adjusting screw, clockwise to increase rpm, counter-clockwise to decrease rpm.
Adjust idle mixture by turning idle mixture screw slowly clockwise until the engine runs poorly.

Do modern cars have carburetors?

All production vehicles today use computerized fuel injection systems to feed fuel and air into the combustion chamber of the engine. After that, you have to let the engine warm up. Otherwise, it simply won't run right. Carburetors on cars operated the same way.

Is a carburetor better than fuel injection?

So with a carburetor, the best fuel to air ratio for each cylinder is approximated for the best performance. However, carburetors do last longer than fuel injection systems and are favored in motor sports. The carburetor is currently much less expensive than the electronic fuel injection systems.

What are the symptoms of a bad carburetor?

Symptoms of a Bad or Failing Carburetor

Reduced engine performance. One of the first symptoms commonly associated with a bad or failing carburetor is a reduced engine performance.
Black smoke from exhaust. Another symptom commonly associated with a problematic carburetor is black smoke coming from the exhaust.
Backfiring or overheating.
Hard starting.

What size carburetor do I need?

The engine's volumetric efficiency is a measurable value and with a correctly matched carburetor you will receive the best performance possible out of your engine. The formula for calculating how much CFM (cubic feet per minute) an engine requires is: CFM = Cubic Inches x RPM x Volumetric Efficiency ÷ 3456.

When did cars stop having carburetors?

In the U.S. market, the last cars using carburetors were: 1990 (General public) : Oldsmobile Custom Cruiser, Buick Estate Wagon, Cadillac Brougham, Honda Prelude (Base Model), Subaru Justy. 1991 (Police) : Ford Crown Victoria Police Interceptor with the 5.8 L (351 cu in) V8 engine.

What causes a carburetor to go bad?

If there is too much fuel, the engine can flood, run poorly, have bad fuel economy, or become very smoky while running. This is called running rich. The carburetor plays an important part in keeping your vehicle in smooth operating condition. Problems with the carburetor are often attributed to the part becoming dirty.

What are the main parts of a carburetor?

The Main Parts of Carburetor is:

Float Chamber.
Strainer.
Metering system.
Idling system.
Throttle valve.
Choke Valve.

What is the main function of a carburetor?

The carburetor has several functions: 1) it combines gasoline and air creating a highly combustible mixture, 2) it regulates the ratio of air and fuel, and 3) it controls the engine's speed.

How does a carburetor get fuel?

The carburetor has two swiveling valves above and below the venturi. At the top, there's a valve called the choke that regulates how much air can flow in. If the choke is closed, less air flows down through the pipe and the venturi sucks in more fuel, so the engine gets a fuel-rich mixture.

Who invented the carburetor?

Donát BánkiJános CsonkaGeorge Kingston

What is a butterfly carburetor?

Carburetor, also spelled carburettor, device for supplying a spark-ignition engine with a mixture of fuel and air. The choke, a butterfly valve, reduces the intake of air and allows a fuel-rich charge to be drawn into the cylinders when a cold engine is started.

What does a choke do?

A choke valve is sometimes installed in the carburetor of internal combustion engines. Its purpose is to restrict the flow of air, thereby enriching the fuel-air mixture while starting the engine. Chokes were nearly universal in automobiles until fuel injection began to supplant carburetors.

Why carburetor is not used in diesel engine?

All diesel engine use fuel injection and they always have done. Diesel does not evaporate like petrol does so a carburetor cannot be used and the fuel has to be injected into the intake air under very high pressure in order to get it to atomise. The intake valve(s) close, and the compression stroke begins.

What is the best carburetor cleaner?

10 Best Carburetor Cleaners

#1 – Berryman 0996 Chem-Dip Carburetor Cleaner.
#2 – Gumout Jet Spray Carb/Choke and Parts Cleaner.
#3 – Berryman 0117C B-12 Chemtool Carb Cleaner.
#4 – Mag 1 414 Carburetor and Choke Cleaner Spray.
#5 – Berkebile Oil 2+2 Instant Gum Cutter and Carb Cleaner.
#6 – CRC Carb Cleaner Aerosol Spray.

How does small engine carburetor work?

How a carburetor works: Air enters the carburetor through the engines air intake system. This creates a vacuum that pulls fuel in through the very small fuel jet, which lets just enough fuel in to create the right ratio for an explosion to power the engine.

How many types of engines are there?

two

What does a carburetor float do?

The carburetor float needle, moved by the float, controls fuel flow, maintaining the fuel level in the chamber. As the float chamber fills, the float moves up, closing the float needle and stopping the flow of fuel into the chamber.
