What is the bond angle for pcl3?
Emma Newman about 109 degrees
.
Herein, what is the bond angle of pf3?
109.5°
Additionally, is there back bonding in PCl3? pcl3 , pbr3 , pi3 may have the back – bonding concepts associated with them, as there are the vacant d orbitals present in the Halogen atom and p atoms from the P atom. Because the back bonding is the overlapping of the p orbitals ovr d orbitals.
Similarly, it is asked, what is the shape of PCl3?
Based on VSEPR theory : Molecular shape of the PCl3 is Trigonal pyramidal and electronic geometry is teterahedral. Central phosphorous atom is sp3 hybridized and it has three bond pair and one lone pair of electrons.

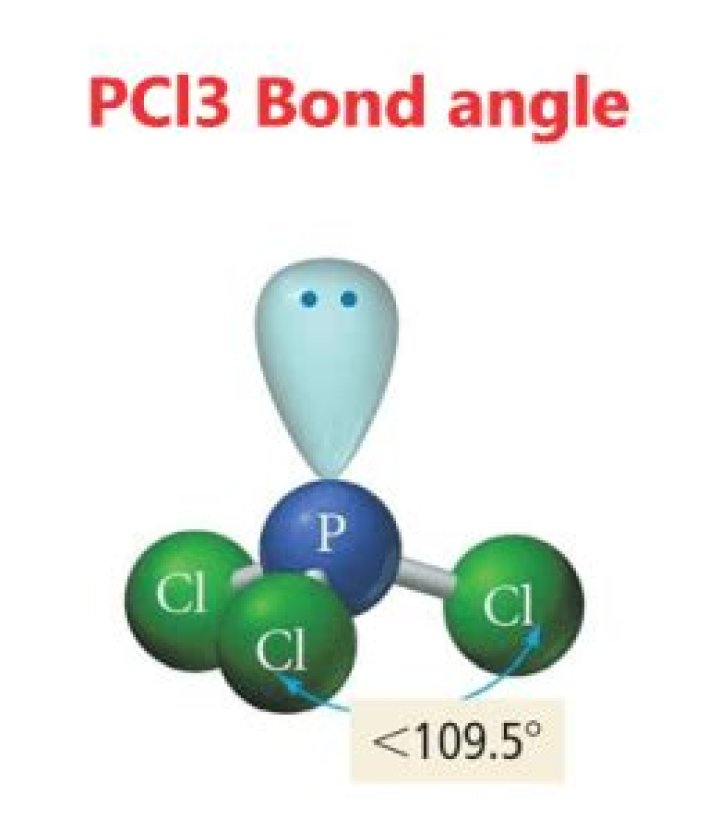

What is the bond angle of PCl3?
PCl3 has 3 sigma bonds(P—Cl )bonds and one lone pair so total 4, according to VSEPR theory its electronic arrangemnet will be tetrahedral but due to the presence of lone pair which exert repulsion towards bond pairs its bond angle reduce from actual tetrahedral 109.5 to 107.5 and show trigonal pyramidal geometry.
Related Question Answers
Is h2o polar or nonpolar?
A water molecule, abbreviated as H2O, is an example of a polar covalent bond. The electrons are unequally shared, with the oxygen atom spending more time with electrons than the hydrogen atoms. Since electrons spend more time with the oxygen atom, it carries a partial negative charge.What are the expected bond angles in ICl4+?
What are the expected bond angles of ICl4+? Choose all that apply: a) 90 degrees b)109.5 degrees c)120 degrees d)180 degrees.Is XeF4 polar or nonpolar?
XeF4 Polarity – Is XeF4 Polar or Nonpolar? As we can see that the XeF4 molecular geometry has the symmetric distribution of electrons and they make a formation in the single square plane. So, we can say that the XeF4 is nonpolar.Which has more bond angle ph3 or pf3?
PH3 and PF3 are also pyramidal in shape with one lone pair on P. But PF3 has greater bond angle than PH3. In PF3 the lone pair on the phosphorus pushes the P-F bonding electrons away from itself, and resulting in resonance, leading to partial double bond character.Is trigonal pyramidal polar?
The unsymmetric shapes are bent and trigonal pyramidal. The symmetric shapes are associated with molecules whose central atoms have no lone pairs. If so, the molecule is nonpolar. If there is more than one kind of atom attached to the central atom, the molecule is polar.How many lone pairs are in pf3?
one lone pair
How many lone pairs are in PCl3?
3 lone pairs
What shape is h2s?
Answer and Explanation:The molecular shape of hydrogen sulfide is bent. The central atom sulfur is bonded to two hydrogen atoms.Is PCl3 trigonal planar?
No. PCl3 is not trigonal planar. It is trigonal pyramidal in shape. This is due to PCl3 being sp3 hybridized.Is BrF3 planar?
(a) CO, (c) BrF3, BBr3, like BF3, is trigonal planar and the B-Br bond dipoles cancel out. The same is true for trigonal bipyramidal PF5. BrF3 is a distorted T-shape, and the bond dipoles don't cancel out.What is the hybridization of PCl3?
Structure of PCl3. As hybridisation is equal to sum of sigma bonds +number of lone pairs. Hence in PCl3 we have 3 sigma bonds(P—Cl )bonds and one lone pair so total 4, hence hybrdisation is sp3. PCl3 molecule a trigonal pyramidal geometry or shape.Can PCl3 be made?
Phosphorus trichloride is prepared industrially by the reaction of chlorine with a refluxing solution of white phosphorus in phosphorus trichloride, with continuous removal of PCl3 as it is formed.Is PCl3 tetrahedral?
The shape of a P C l 3 PCl_3 PCl3 molecule is Trigonal pyramidal. The central P atom has one lone pair of electrons and three bond pairs of electrons. It undergoes s p 3 displaystyle sp^3 sp3 hybridisation which results in tetrahedral electron pair geometry and Trigonal pyramidal molecular geometry.Is XeF4 planar?
The VSEPR structure of XeF4 is square planar. It is an octahedral but because of the lone pairs, it dictate there 6 Domains around the central atom and the VSEPR theory states any AX4E2 specie with 2 lone pairs is square planar.What is the shape of bcl3?
trigonal planar
What does Bond angle depend on?
Electronegativity:- If the electronegativity of the central atom decreases, Bond angles mainly depend on the following three factors:- Hybridization:- Bond angle depends on the state of hybridization of the central atom. Greater the s character, greater is the bond angle.What affects bond angle?
Lone pair repulsion: Bond angle is affected by the presence of lone pair of electrons at the central atom. A lone pair of electrons at the central atom always tries to repel the shared pair (bonded pair) of electrons. Electronegativity: If the electronegativity of the central atom decreases, bond angle decreases.Which bond angle is the smallest?
| # of bonding groups/domains on 'central' atom | # of lone pair electrons on 'central' atom | Bond Angle |
|---|---|---|
| 3 | 1 | less than 109.5 |
| 2 | 2 | less than 109.5 |
| 5 | 0 | 90, 120 and 180 |
| 4 | 1 | 90, 120 and 180 |
